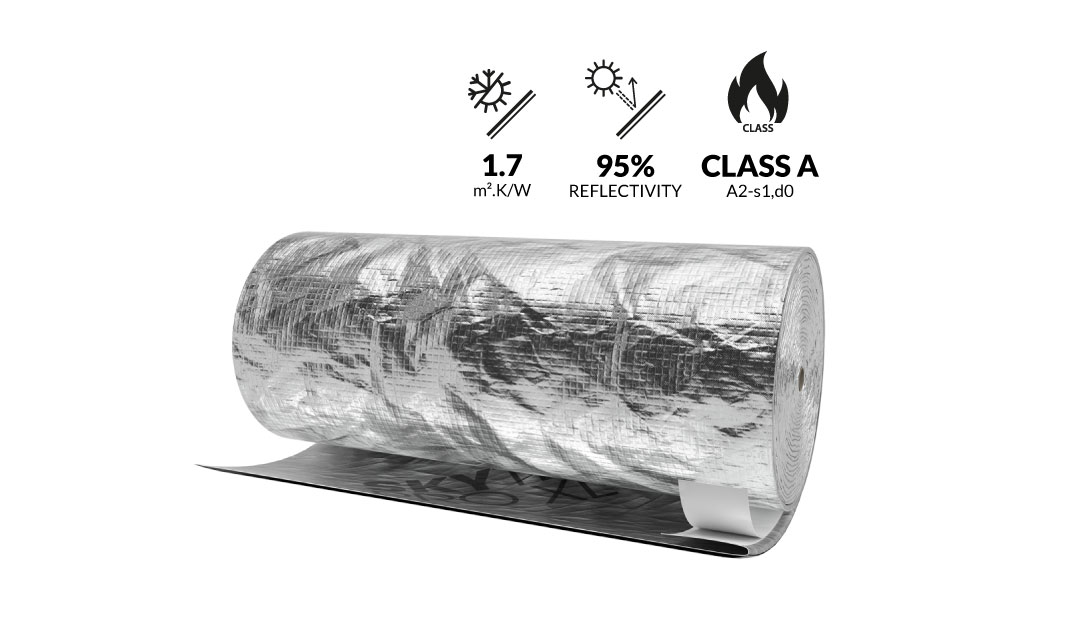

Skytech Pro XL
Non-combustible and insulating breather membrane.
It is used for roofs and facades, in new builds and refurbishments.
Applications :
- Roof thermal refurbishments
- Facade thermal refurbishments
- Timber frame constructions
- Public buildings
- Off-site constructions
- Metal frame constructions
Benefits
- Non-combustible (A2-s1,d0 according to EN 13501-1)
- Thermal comfort during summer and winter (reflective insulation)
- Vapour permeable
- Improves airtightness
- Strong mechanical resistance
Technical datas
| Reaction to fire | A2-s1,d0 | A2-s1,d0 |
| Thermal resistance | 1,7 m².K/W | 2,20 m².K/W |
| Thermal conductivity (ʎ) | 0,029 W/mK | 0,029 W/mK |
| Water vapour permeance (Sd Value) | 0,06 m | 0,08 m |
| Resistance to vapour penetration | 0,3 MN.s/g | 0,40 MN.s/g |
| Water vapour diffusion coefficient (μ) | 7 | 3 |
| Air tightness | 0,072 m³/(hxm²x50 Pa) | 0,072 m³/(hxm²x50 Pa) |
| UV resistance (without cladding) | 9 months | 9 months |
| UV resistance* (50% and 50 mm joints) | Permanent (5 000 hours tested) | Permanent (5 000 hours tested) |
| Temperature range | -36°C to 90°C | -36°C to 90°C |
| Water penetration | W1 | W1 |
| Material | Micro-perforated aluminum foils Functional film Glass fibre fabric E glass needle mat Integrated adhesive tape |
|
| Thickness | 13 mm | 26 mm |
| Mass per unit area | 1 346 g/m² | 2 900 g/m² |
| Width | 1,12 m | 1,06 m |
| Length | 18 m | 6,40 m |
| Total m² | 20 m² | 6,80 m² |
| Usable m² | 18 m² | 6,15 m² |
| Weight | 25 kg | 19 kg |
| Packaging | 12 rolls/pallet (240 m²) | 12 rolls/pallet (81,6 m²) |
* For any other project conditions, contact our technical department.
